Art Nouveau Door Plate Entry set (L63SET)
Price:$704.10
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing
:
Right Hand

Left Hand
Finish Option:
Polished Unlacquered Brass
Antique Brass Finish

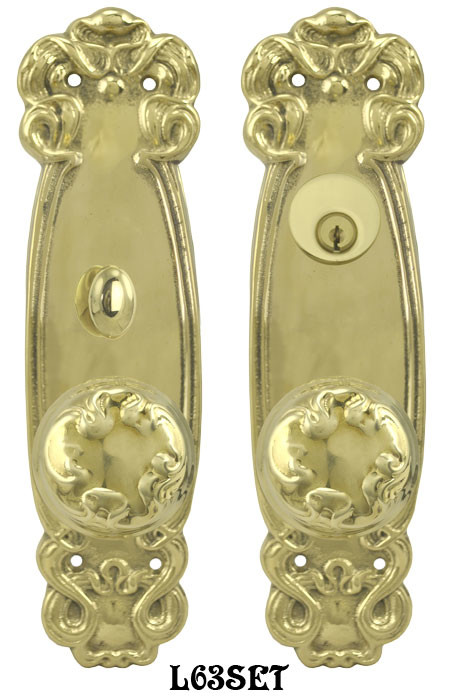

Art Nouveau Door Plate Entry set (L63SET)







L63SET Art Nouveau Door Plate Entry set in Polished brass

L63SETDK Art Nouveau Door Plate Entry set in antiqued brass

This lovely Art Nouveau Series is all solid cast brass. Art Nouveau was popular from the late 1800's through Edwardian times of the early 1900's. Graceful, flowing lines that highlighted the beauty of nature distinguish the style.



This is an Exterior Entry with Cylinder Lock set.

This Complete door set has been hand finished in an antiqued brass.

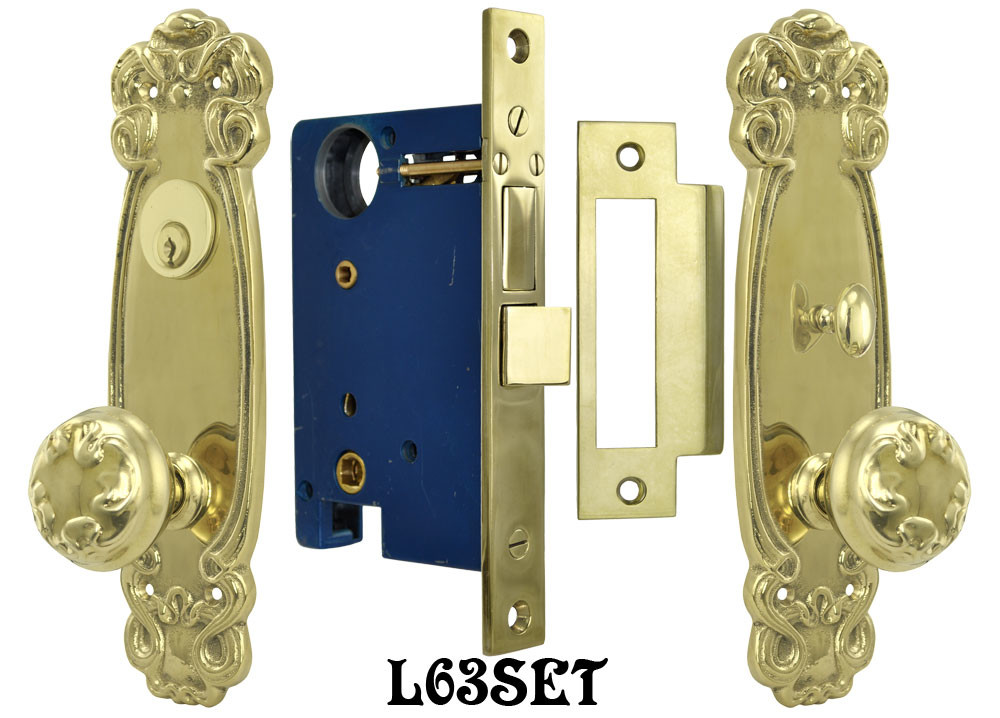

The complete door set includes:

  1. Interior Door Plate
  2. Exterior Door Plate
  3. Mortise Lock
  4. Two Doorknobs with connecting spindle
  5. Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Measurements:

Door Plates: 2 3/4" wide by 10" tall.

PLock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".

Catch plate is 4 7/8" long by 1 7/8".
