L80ASET  Clear Glass Knobs Option

L80ASET2  Blue Glass Knobs Option

L80ASET3  Green Glass Knobs Option

L80ASET4  White Glass Knobs Option

L80ASET5  Round Brass Knobs Option

L80ASET6  Oval Brass Knobs Option

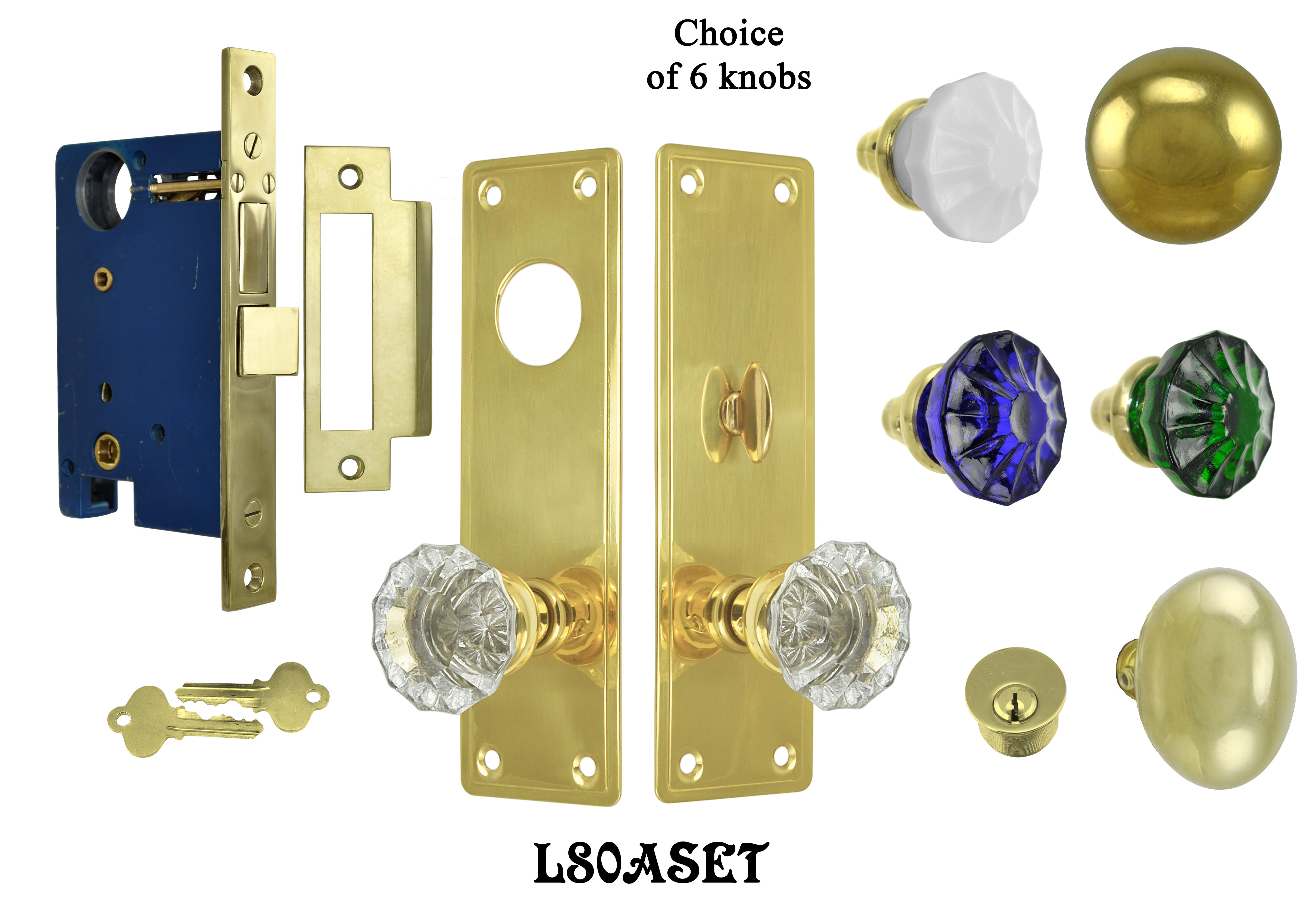

The complete door set includes:

• One Exterior Door Plate
• One Interior Door Plate with Turnlatch Function
• One Entry Mortise Lock
• Two Doorknobs with the Connecting Spindle
• One Cylinder Lock
  • Please refer to our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Measurements:

• Door Plates:  2 ¼" wide x 7" tall overall.
• Mortise Lock:
  • Backset:  2 ½", including the thickness of the face plate.
  • Lock Body:  5 ½" tall by 3 ⁵⁄₈" deep.  Thickness is ¹³⁄₁₆".
  • Lock Face:  7 ½" tall x 1" wide.
  • Catch Plate:  4 ⁷⁄₈" tall by 1 ⁷⁄₈" wide.
  • Measurement from the center of the cylinder hole to the center of the doorknob spindle hole is 3 ¾".
  • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ³⁄₈".

Mounting screws are included for each item in this doorset.
