Gothic or Arts and Crafts Iron Double Door Entry Set (Z344DBS)
Price:$853.00
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing:
Left Hand
Right Hand
Gothic or Arts and Crafts Iron Double Door Entry Set (Z344DBS)
alternate view 0alternate view 1

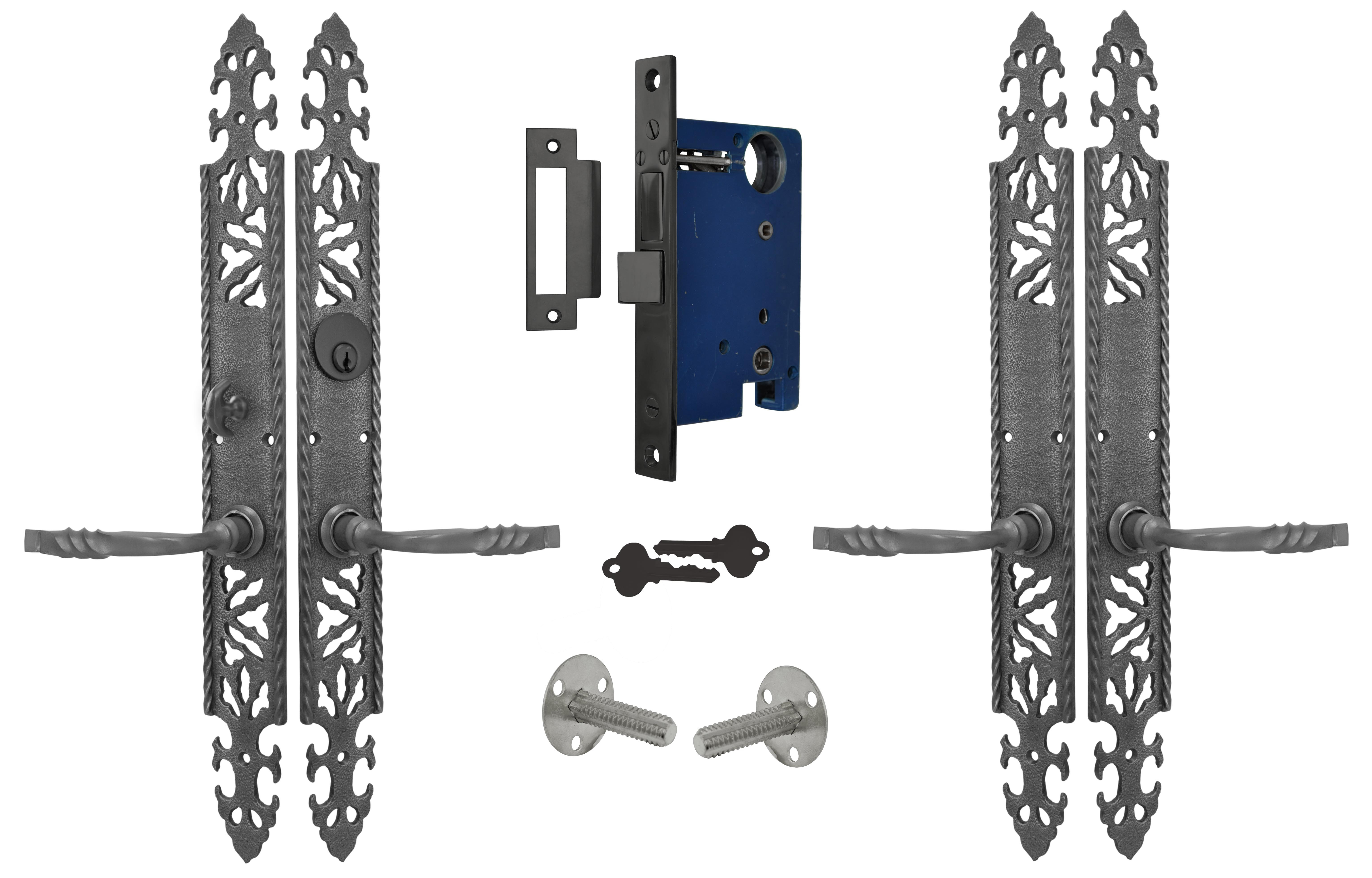

Z344DBS  Gothic or Arts and Crafts Iron Double Door Entry Set

Solid Iron entry double door set.  Has a very Gothic, or rustic, Arts and Crafts appeal.

This is an Exterior Entry with Cylinder Lock set.

The complete door set includes:

  • One Exterior Door Plate for the Active Door
  • One Interior Door Plate with Turnlatch Function
  • Two "Knob Only" Door Plates for the Passive Door
  • Four Lever Handles
  • One Mortise Lock with Cylinder Lock
  • One Active Spindle
  • Two Dummy Spindles

Measurements:

  • Door Plates:  2" wide by 17 ¼" long.  516" thick.
  • Lever Handles:
    • Length:  4 38"
    • Projection:  2 ¼"
    • Thickness:  58"
    • Base Diameter:  1116"
  • Entry Mortise Lock:
    • Lock Body:  5 ½" tall by 3 58" deep.  1316" thickness.
    • Lock Face:  7 ½" tall x 1" wide.
    • Backset:  2 ½", including the thickness of the face plate.
    • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".
    • Catch Plate:  4 78" tall by 1 4 78" wide.

Mounting screws are included for all hardware in this set.
