Arts & Crafts Hammered Copper Double Door Entry Set (ZC17DBS)
Price:$931.70
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing:
Left Hand
Right Hand
Arts & Crafts Hammered Copper Double Door Entry Set (ZC17DBS)
alternate view 0alternate view 1

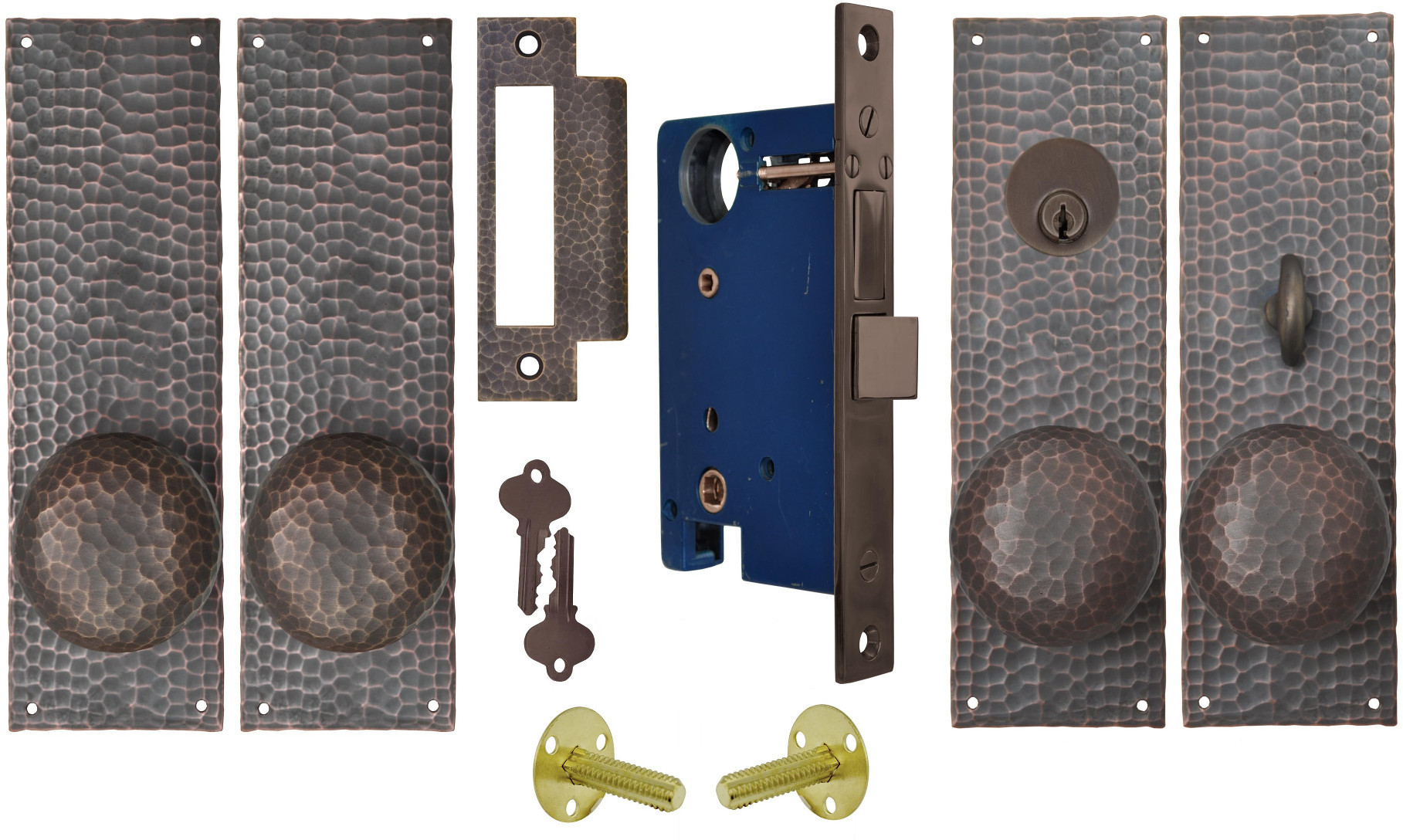

ZC17DBS  Arts & Crafts Hammered Copper Double Door Entry Set

We don't mean just an arts & crafts style; Each door plate is created by skilled craftsmen from sheet copper using hundreds of blows. We put a darkened patina finish for a great Arts & Crafts or Mission look.

The complete door set includes:

  1. Interior Door Plate
  2. Exterior Door Plate
  3. Two Knob Only Door Plates
  4. Four Door Knobs
  5. Two Dummy Spindles
  6. Mortise Lock with spindle
  7. Cylinder Lock. See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Backplates Measures Ht-8" x W-2 1/2"

The distance from the center of the cylinder hole to the thumb latch bolt is 4 3/4".

Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".

Catch plate is 4 7/8" long by 1 7/8".

Knob Measures: 2 3/8" diameter by 2 1/4" tall.
