Arts & Crafts Hammered Copper Door Plate Locking Turnlatch Mortise (ZC17MTSET1)
Price:$419.50
Quantity:
Add to cart
Add to cart

Options:
Arts & Crafts Door Set with 2 ¼" Backset Turnlatch Mortise Lock
Arts & Crafts Door Set with 2 ⅝" Backset Turnlatch Mortise Lock
Set Door Handing:
Left Hand
Right Hand

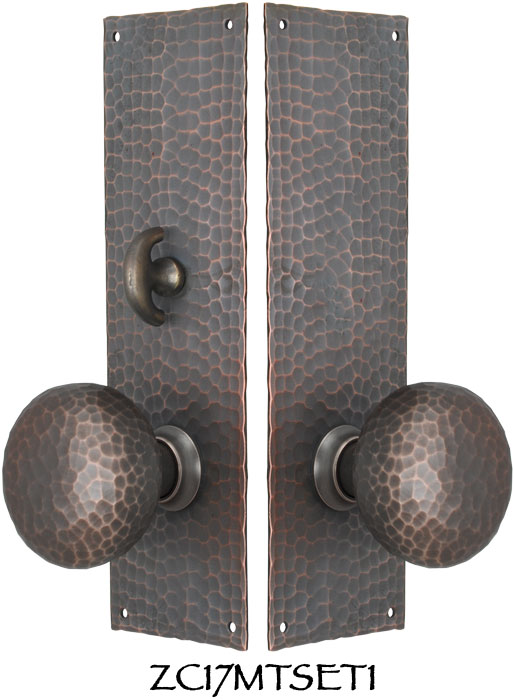

Arts & Crafts Hammered Copper Door Plate Locking Turnlatch Mortise (ZC17MTSET1)
alternate view 0alternate view 1alternate view 2

Arts & Crafts Replica Privacy Hammered Copper Door Plate Set
with Turnlatch Mortise Lock

ZC17MTSET1-1  Arts & Crafts Door Set with 2 ¼" Backset Mortise Lock
ZC17MTSET1-2  Arts & Crafts Door Set with 2 58" Backset Mortise Lock

We don't mean just any Arts & Crafts style.  Each door plate is created by skilled craftsmen from sheet copper using hundreds of blows.  We put a darkened patina finish for a great Arts & Crafts or Mission look.

This Interior Mortise Privacy Set locks from one side using a turnlatch.

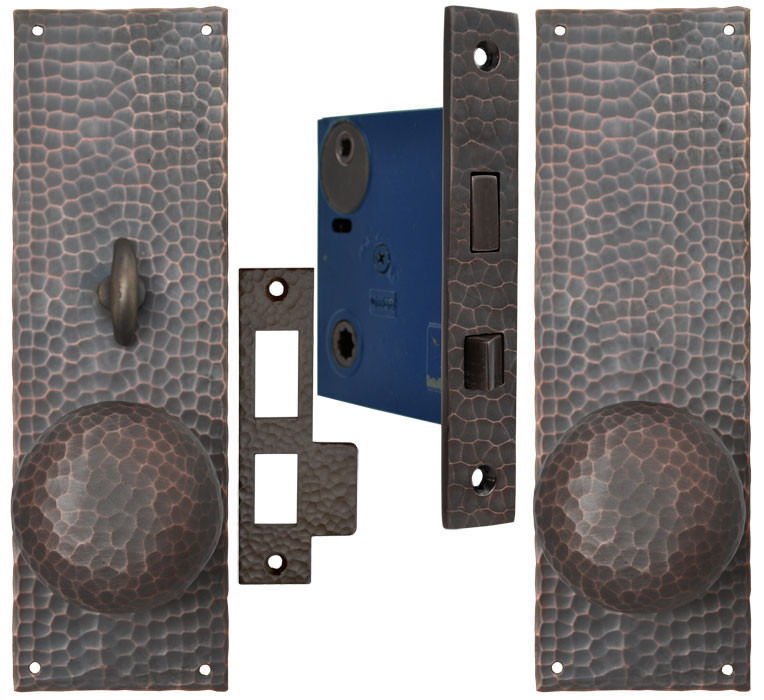

Each Set Includes:

  • 1 Door Plate with Lower Doorknob Only Function
  • 1 Door Plate with Lower Doorknob & Turnlatch Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Door Plates:  2 ½" wide by 8" long.
  • Doorknobs:  2 38" diameter; each projects 2 ¼".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws are included for each piece of hardware in this set.
