Arts & Crafts Entry Hammered Copper Door Plate Set (ZC17SET1)
Price:$801.20
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing
:
Right Hand

Left Hand
Arts & Crafts Entry Hammered Copper Door Plate Set (ZC17SET1)

ZC17SET1  Arts & Crafts Entry Hammered Copper Door Plate Set

We don't mean just an arts & crafts style; Each door plate is created by skilled craftsmen from sheet copper using hundreds of blows. We put a darkened patina finish for a great Arts & Crafts or Mission look.

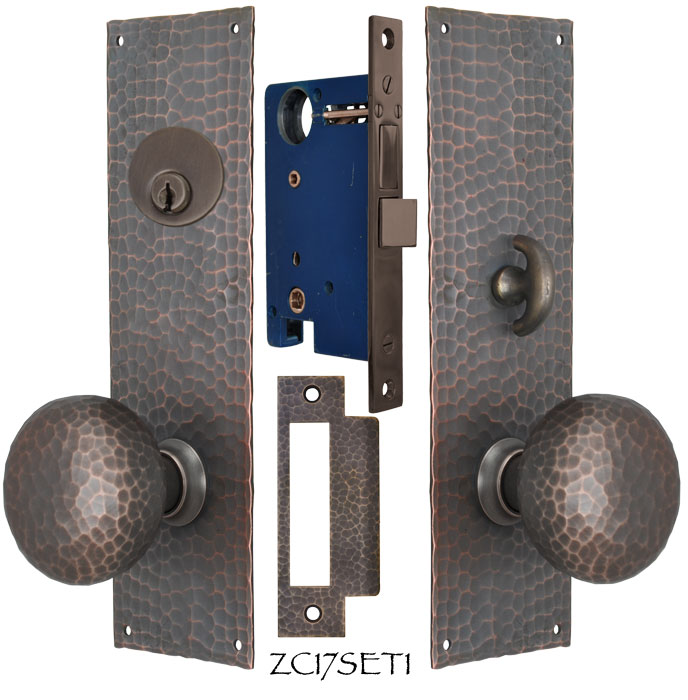

The complete door set includes:

  1. Interior Door Plate
  2. Exterior Door Plate
  3. Two Door Knobs with spindle
  4. Mortise Lock
  5. Cylinder Lock. See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Backplates Measures Ht-8" x W-2 1/2"

The distance from the center of the cylinder hole to the thumb latch bolt is 4 3/4".

Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".

Catch plate is 4 7/8" long by 1 7/8".

Knob Measures: 2 3/8" diameter by 2 1/4" tall.
