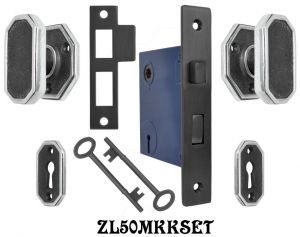

ZL50MKKSET-1  Two-Tone Finish Art Deco Door Set with 2 ¼" Backset Mortise Lock
ZL50MKKSET-2  Two-Tone Finish Art Deco Door Set with 2 ⁵⁄₈" Backset Mortise Lock

Great smaller-size Art Deco door set with a classic, octagonal design.

Cast in zinc, and sold in the pictured two-tone finish.  The recessed areas are finished in black, and the raised areas have been polished for contrast.

This is an interior mortise passage set which locks from both sides using a skeleton key.

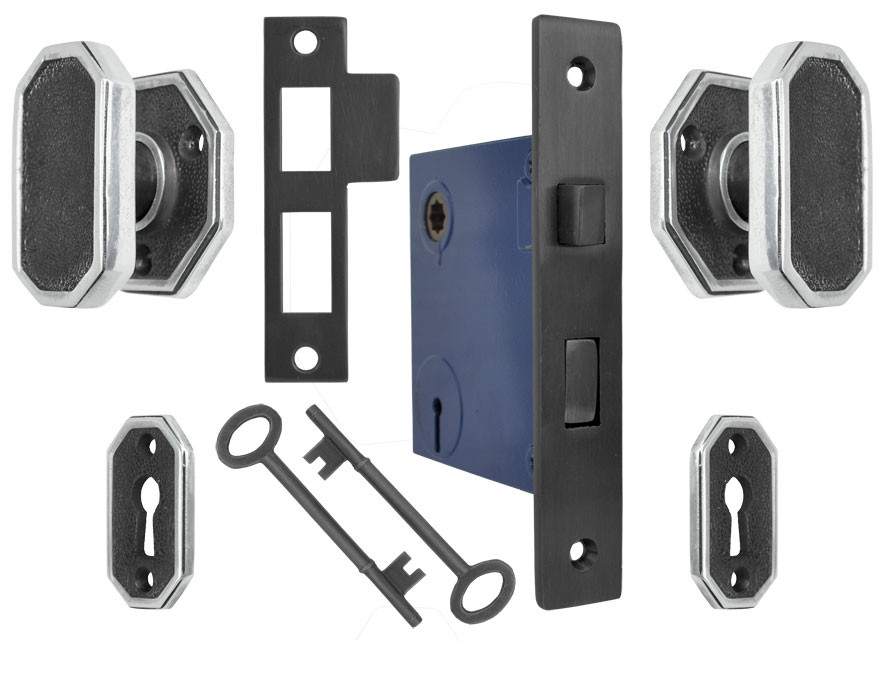

Each Set Includes:

• 2 Rosettes
• 2 Doorknobs with the Connecting Spindle
• 2 Keyhole Escutcheons
• 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Rosettes:  1 ¹⁵⁄₁₆" diameter across the flats, 2" diameter across the points.
• Doorknobs:  2 ³⁄₁₆" tall x 1 ¼" wide; project 1 ¹⁄₈".
• Keyhole Escutcheons:  1 ¹³⁄₁₆" tall x 1 ¹⁄₁₆" wide.
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included for each piece of hardware in this set.
