ZL50MKSET-1  Two-Tone Finish Art Deco Door Set with 2 ¼" Backset Mortise Lock
ZL50MKSET-2  Two-Tone Finish Art Deco Door Set with 2 ⁵⁄₈" Backset Mortise Lock

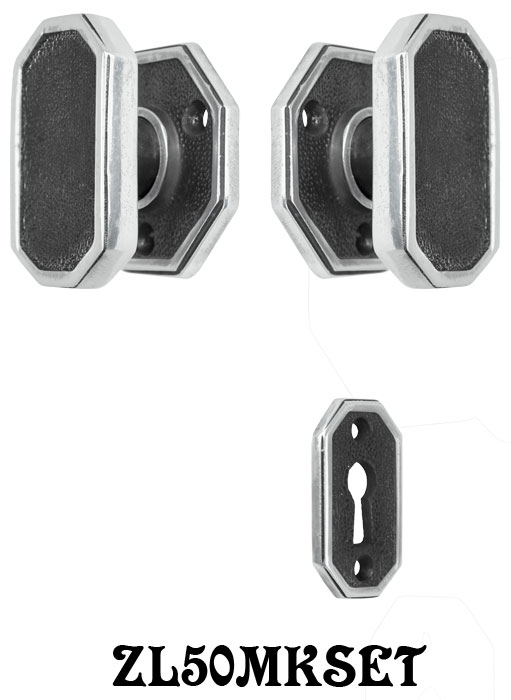

Great smaller-size Art Deco door set with a classic, octagonal design.

Cast in zinc, and sold in the pictured two-tone finish.  The recessed areas are finished in black, and the raised areas have been polished for contrast.

This Interior Mortise Privacy Set locks from one side only using a skeleton key.

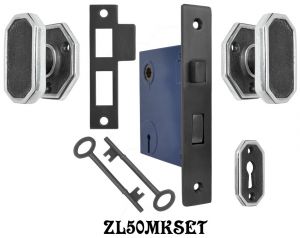

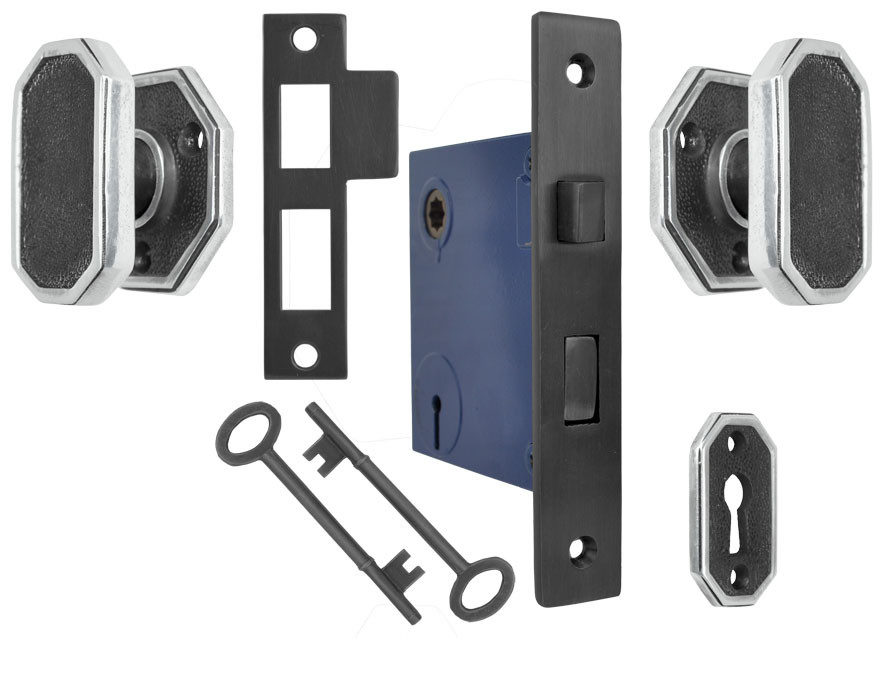

Each Set Includes:

• 2 Rosettes
• 2 Doorknobs with the Connecting Spindle
• 1 Keyhole Escutcheon
• 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 ⁵⁄₈" backset)

Measurements:

• Rosettes:  1 ¹⁵⁄₁₆" diameter across the flats, 2" diameter across the points.
• Doorknobs:  2 ³⁄₁₆" tall x 1 ¼" wide; project 1 ¹⁄₈".
• Keyhole Escutcheons:  1 ¹³⁄₁₆" tall x 1 ¹⁄₁₆" wide.
• Mortise Locks:
  • 2 ¼" Backset Lock:
    • Lock Body:  3 ¾" tall x 2 ⁷⁄₈" deep x ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
  • 2 ⁵⁄₈" Backset Lock:
    • Lock Body:  3 ¾" tall x 3 ³⁄₁₆" deep, and ⁵⁄₈" thick.
    • Faceplate:  1" wide x 6" tall; ³⁄₁₆" thick.
    • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
    • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included for each piece of hardware in this set.
