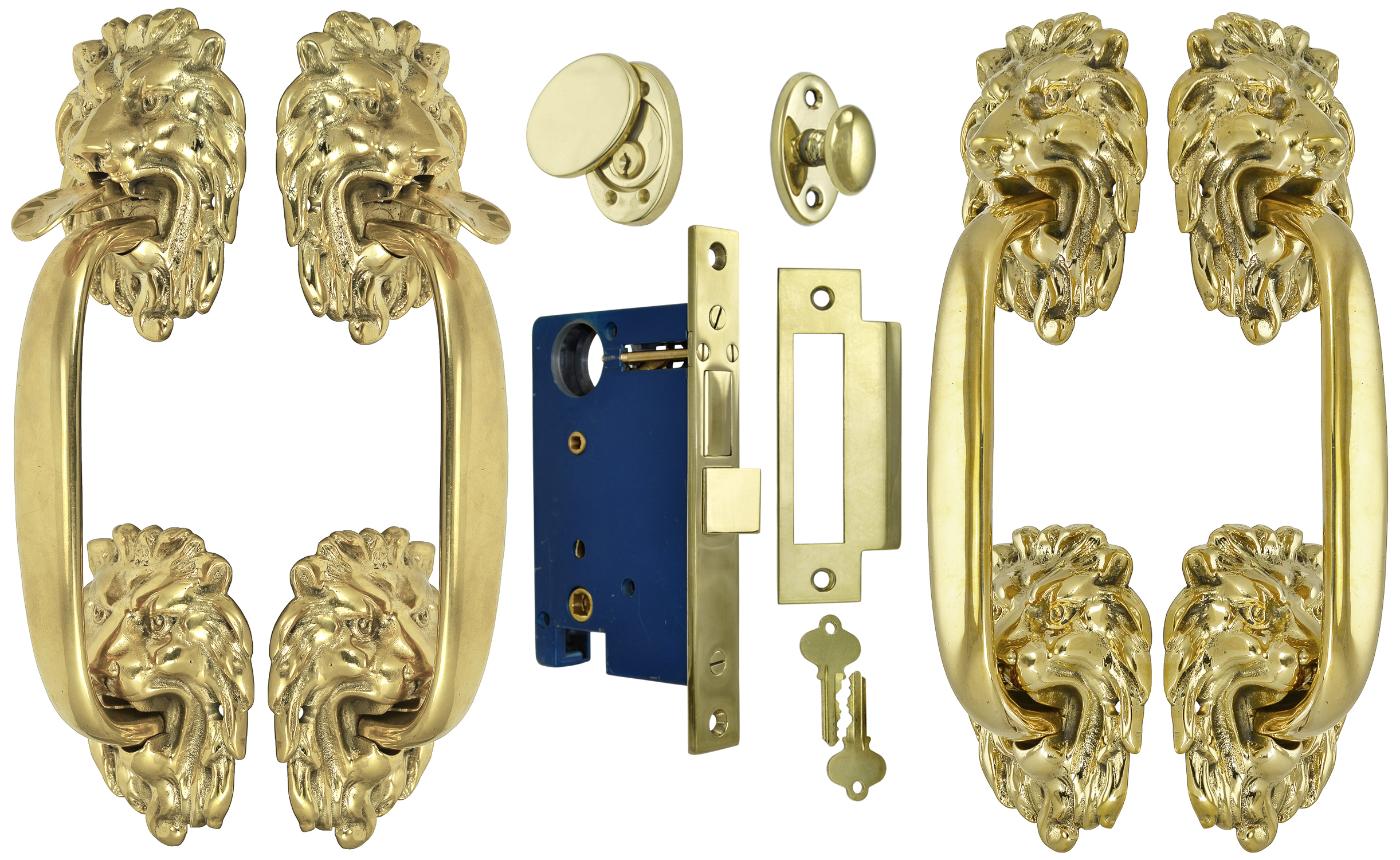

ZLW202SET2PB Polished Brass Victorian-Inspired Lion Head Double Door Entry Set

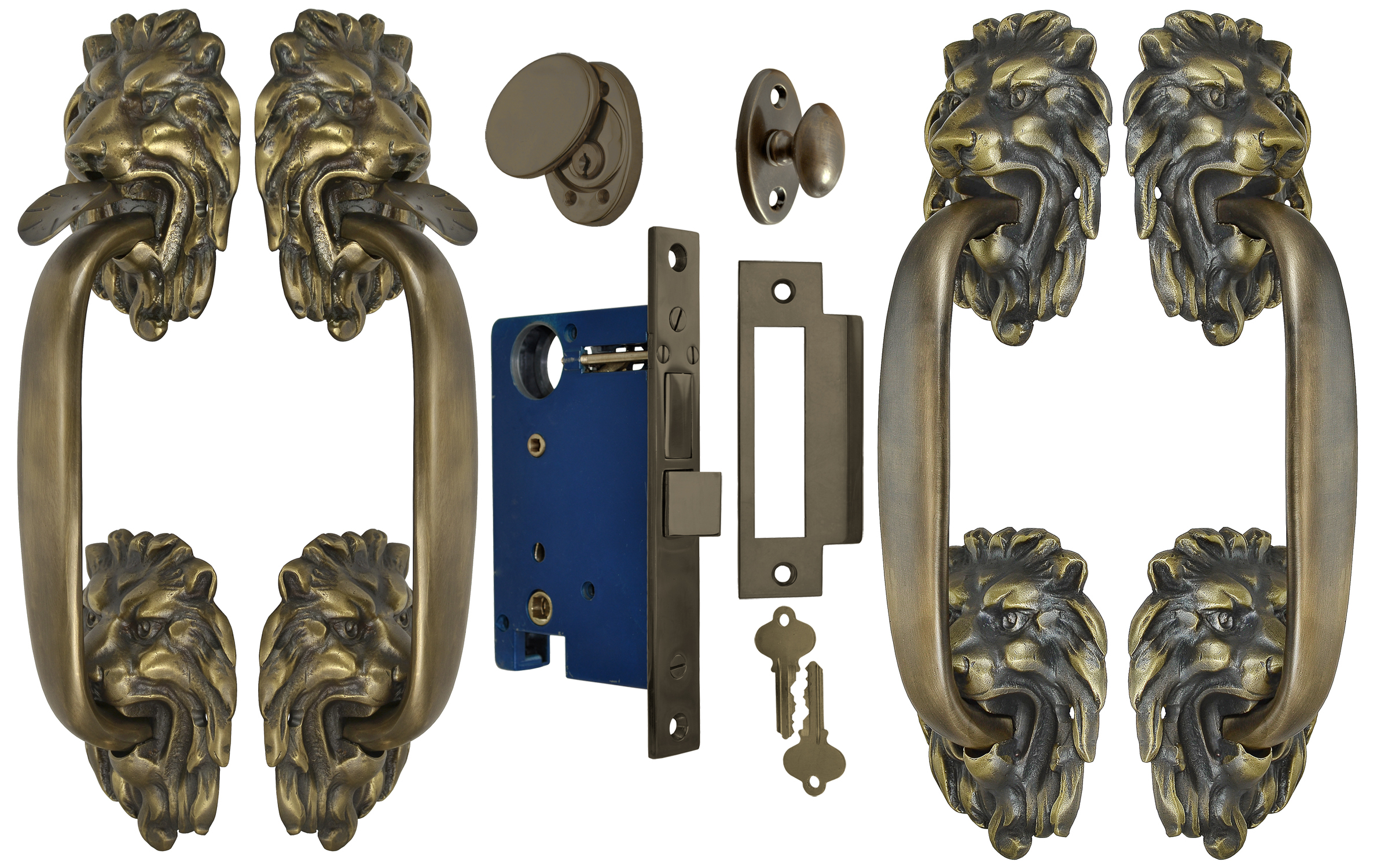

ZLW202SET2DK Antique Brass Finish Victorian-Inspired Lion Head Double Door Entry Set

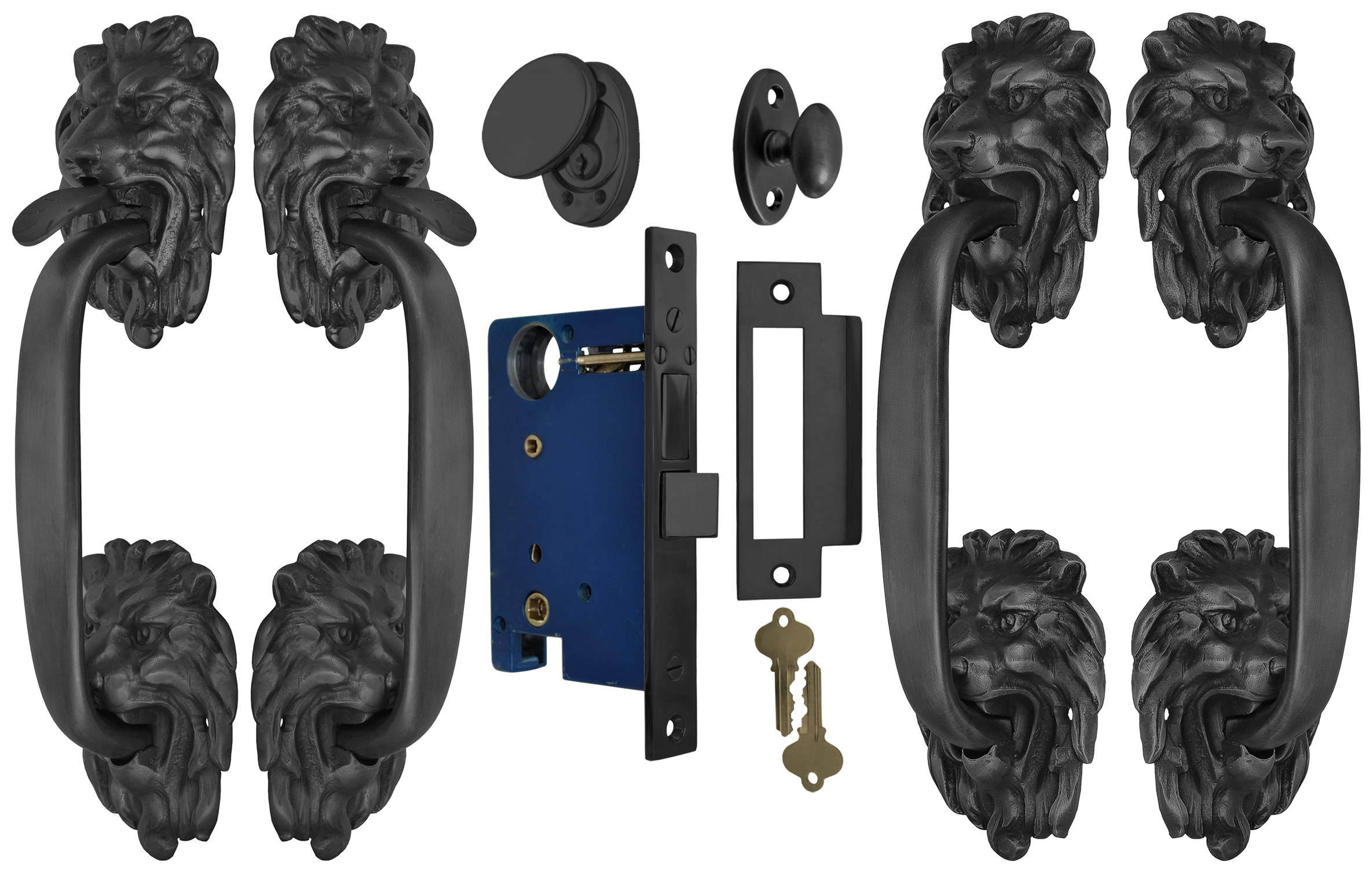

ZLW202SET2OB Oil-Rubbed Bronze Victorian-Inspired Lion Head Double Door Entry Set

Each piece is made of solid brass and individually crafted in our factory using lost wax casting.  This complete double door entry set comes in three finishes: Polished Brass, an aged Antique Brass Finish, or our matte black Oil-Rubbed Bronze Finish.

The complete door set includes:

• Two Lion Head Thumb Latch Door Handles
• Two Lion Head Door Handles
• One Mortise Lock Set
• One Cylinder Lock (with Keys)
• One Cylinder Lock Cover Plate
• One Turn Latch Knob
  • Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Measurements:

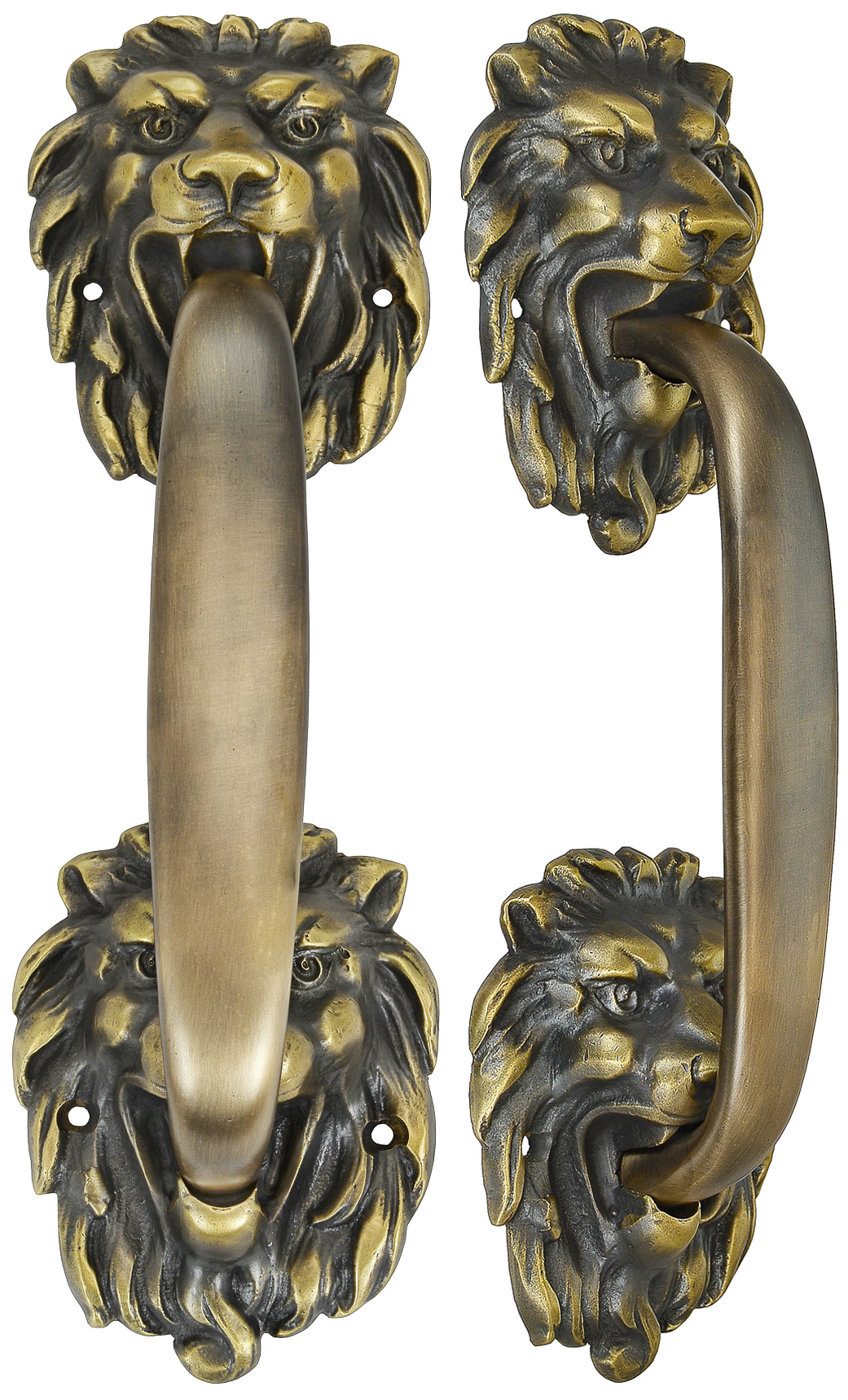

• Door Handles:  13 3/4" high by 4 1/4" wide by 2 1/2" deep.
• Lock Cylinder Cover Plate:  2 1/2" high by 1 3/4" wide.
• Turn Latch Knob:  Knob is 1 1/8" high by 3/4" wide. Backplate is 2" high by 1 1/8" wide.
• Mortise Lock:
  • Lock Body:  5 ½" tall by 3 ⁵⁄₈" deep.  ¹³⁄₁₆" thickness.
  • Backset:  2 ½", including the thickness of the face plate.
  • Lock Face:  1" wide by 7 ½" long.
  • Catch Plate is 4 ⁷⁄₈" long by 1 ⁷⁄₈".
  • Distance from the center of the cylinder receiver to the thumb latch stem is 4 ¾".
  • Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 ½".

Please see our Lock Cylinder Size Chart to determine the correct cylinder length for your door.

Mounting screws are provided for all pieces of hardware in this set.
