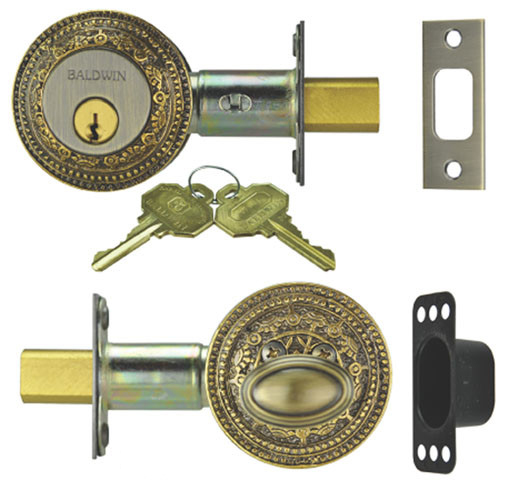

ZB-61ENT  Windsor Pattern Entry Dead Bolt & Cover

Vintage Hardware & Lighting merges the best of two hardware worlds.  Using a “Made in America” Baldwin deadbolt, we have designed and fitted our popular Windsor pattern cylinder surrounds to the fine Baldwin deadbolt.

Both beauty and great function.

Measurements:

The Baldwin deadbolt has a 1” throw and contains a sawproof hardened steel insert to prevent tampering.  Fronts are adjustable for beveled door conditions.

The deadbolt has an adjustable backset features which, with just one half turn (180 degrees) of the case, you can accommodate EITHER a 2 3/8” backset, or a 2 3/4" backset.

Faceplate of the deadbolt is 1” wide by 2 ¼” tall.

Catch plate of the deadbolt is 1 1/8” wide by 2 ¾” tall.

The bolt catch plate "dust box" (black in the picture) fits behind the catch plate for an overall nice appearance.  It is not necessary, but is provided if you do not wish to look at the wood behind the catch plate.

The outside diameter of the decorative backplate is just under 2 1/2" (62mm).  Finishes are as shown.

Complete mounting instructions are supplied.

Look for our beautiful Windsor mortised lock for a full mortise that receives a doorknob.

If you have a double door, or would just like the extra bolt functionality on your single entry door, we suggest using the following popular door bolts:
