Modern Beaded Edge Entry Mortise Set (L49SET)
Price:$427.27
Quantity:
Add to cart
Add to cart

Finish Option:
Nickel Plated
Polished Brass
Antiqued Brass
Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing:
Left Hand
Right Hand
Modern Beaded Edge Entry Mortise Set (L49SET)
alternate view 0alternate view 1alternate view 2

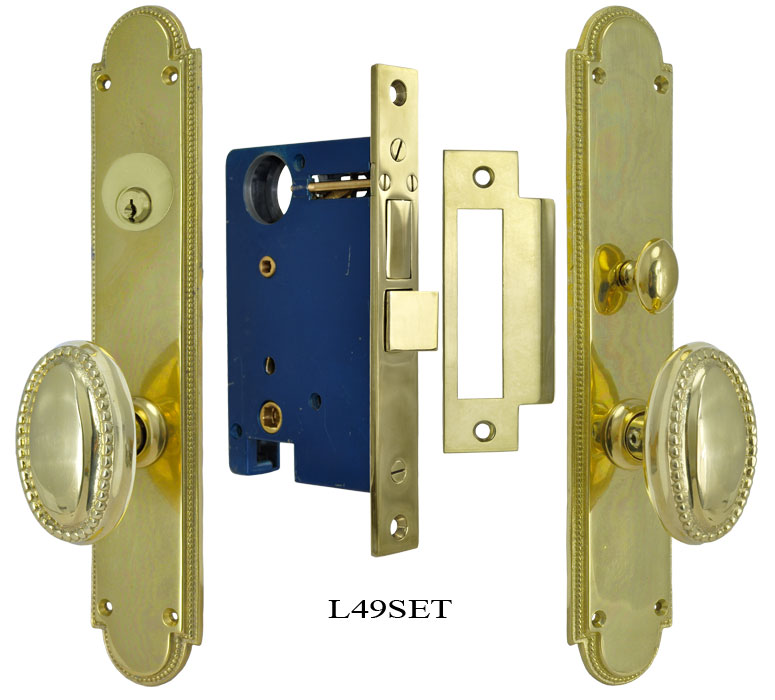

L49SET Polished Brass Modern Beaded Edge Entry Mortise Set

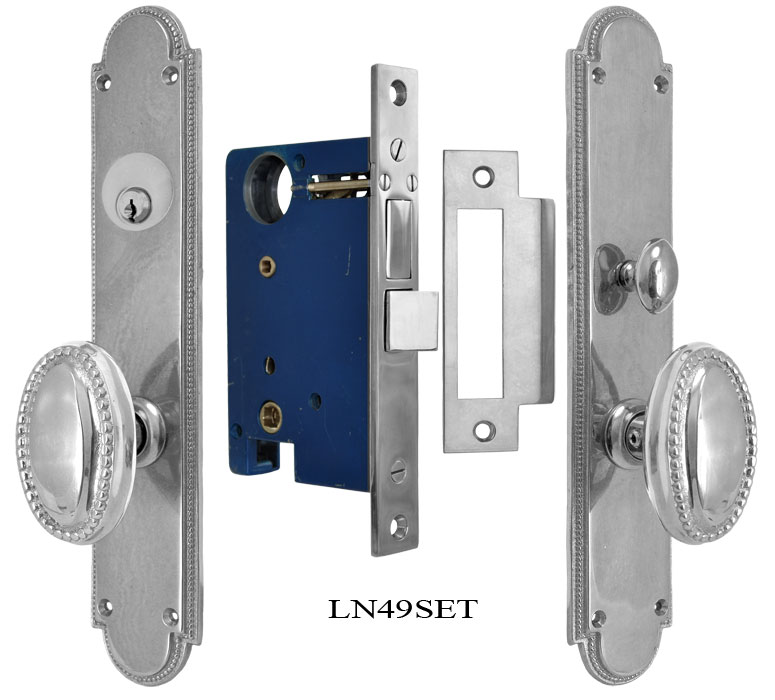

LN49SET Nickel Plated Modern Beaded Edge Entry Mortise Set

LDK49SET Antique Brass Modern Beaded Edge Entry Mortise Set

Great Art Deco Door set. Comes in a Polished Brass and Nickel Plated Brass.

The complete door set includes:

  1. Interior Door Plate
  2. Exterior Door Plate
  3. Mortise Lock
  4. Two Doorknobs with connecting spindle
  5. Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.

Door Plate: 10 1/2" tall by 2" wide.

Measurement from the center of the cylinder hole to the center of the doorknob spindle hole is 3 3/4".

Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long.

Backset is 2 1/2", including the thickness of the face plate.

Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2".

Catch plate is 4 7/8" long by 1 7/8".
