Art Nouveau Door Plate Set with Locking Turnlatch Mortise (L63MTSET3)
Price:$634.10
Quantity:
Add to cart
Add to cart

Options:
Antique Brass Finish with 2 ¼" Backset Mortise Lock
Antique Brass Finish with 2 ⅝" Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 ¼" Backset Mortise Lock
Oil Rubbed Bronze Finish with 2 ⅝" Backset Mortise Lock
Two-Tone Black & Brass Finish with 2 ¼" Backset Mortise Lock
Two-Tone Black & Brass Finish with 2 ⅝" Backset Mortise Lock
Set Door Handing
:
Right Hand

Left Hand
Art Nouveau Door Plate Set with Locking Turnlatch Mortise (L63MTSET3)

Art Nouveau Privacy Door Set
with R&E Victorian Lady Cameo Doorknobs
and Turnlatch Mortise Lock

L63MTSET3-DK1  Antique Brass Finish Door Set with 2 ¼" Backset Mortise Lock
L63MTSET3-DK2  Antique Brass Finish Door Set with 2 58" Backset Mortise Lock

L63MTSET3-OB1  Oil Rubbed Bronze Finish Door Set with 2 ¼" Backset Mortise Lock
L63MTSET3-OB2  Oil Rubbed Bronze Finish Door Set with 2 58" Backset Mortise Lock

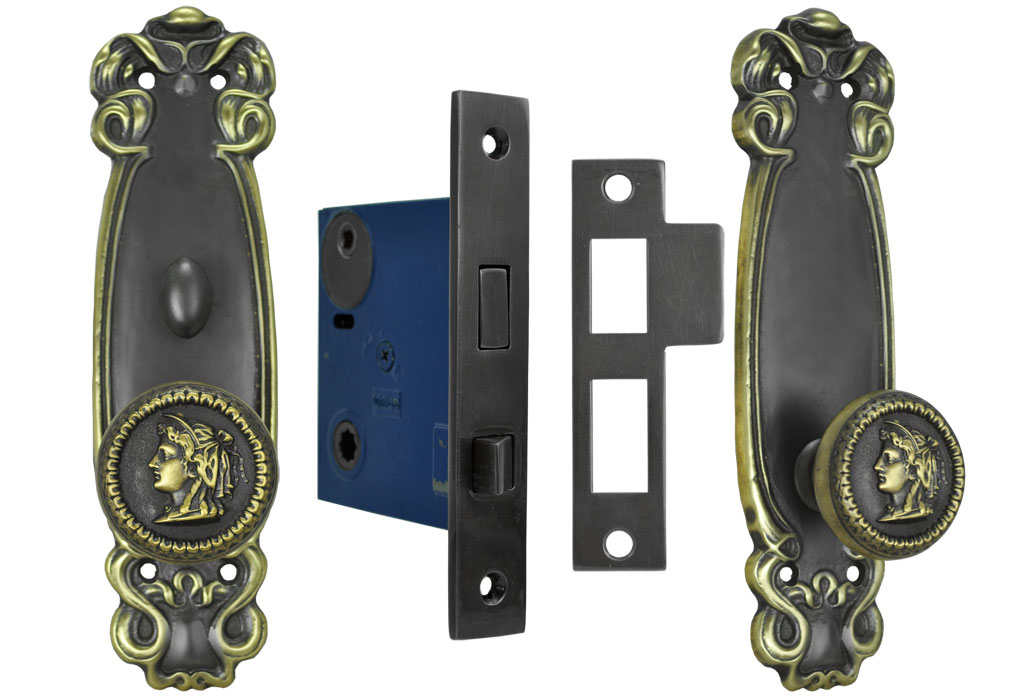

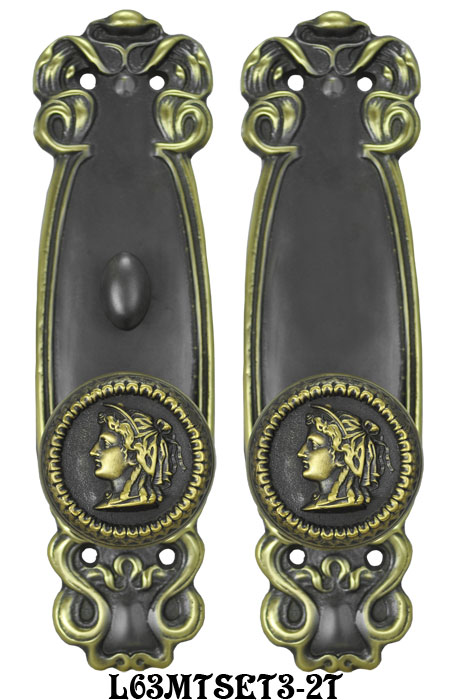

L63MTSET3-2T1  Two-Tone Black & Brass Finish Door Set with 2 ¼" Backset Mortise Lock {PICTURED}
L63MTSET3-2T2  Two-Tone Black & Brass Finish Door Set with 2 58" Backset Mortise Lock {PICTURED}

This lovely Art Nouveau Series is all solid cast brass.  Art Nouveau was popular from the late 1800's through the Edwardian times in the early 1900's.  Graceful, flowing lines that highlighted the beauty of nature distinguish the style.

This set comes complete with a pair of Victorian Lady profile doorknobs, originally designed by MCCC/R&E.  Molded directly from the original, which was one of the first four original patented Kreuzinger knobs (Design Pat: # 4099).

This Interior Mortise Privacy Set locks from one side using a turnlatch.

Each Set Includes:

  • 1 Door Plate with Lower Doorknob Only Function
  • 1 Door Plate with Lower Doorknob & Turnlatch Function
  • 2 Doorknobs with the Connecting Spindle
  • 1 Mortise Lock with Turnlatch Function (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Doorplates:  2 ¾" wide x 10" tall.
  • Doorknobs:  2 38" diameter; each projects 2".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the turnlatch receiver to the center of the doorknob spindle hub is 2 ½".

Mounting screws are included for each piece of hardware in this set.
