Gothic or Arts & Crafts Iron Door Plate Set with Locking Turnlatch (Z344PTSET1)
Price:$341.39
Quantity:
Add to cart
Add to cart

Set Door Handing
:
Right Hand

Left Hand

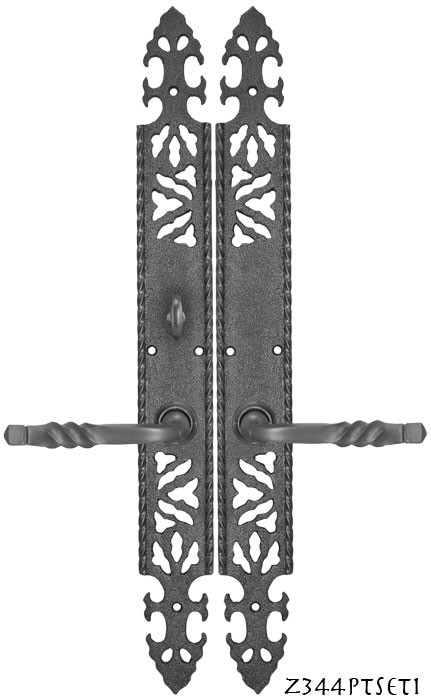

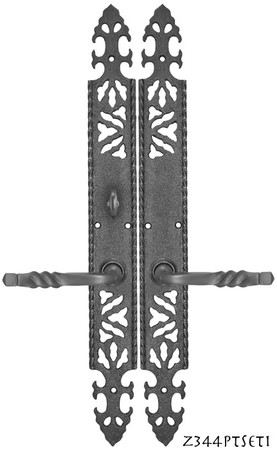

Gothic or Arts & Crafts Iron Door Plate Set with Locking Turnlatch (Z344PTSET1)

Z344PTSET1  Gothic or Arts and Crafts Interior Iron Door Set with Locking Privacy Turnlatch

Solid Iron interior door set.  Has a very Gothic, or Rustic, Arts and Crafts appeal.

This interior passage set locks from one side only using a turnlatch.  This set is for those who don't want to mortise out a door for a full mortise box.  Instead, this set comes with a tubular passage latch and a tubular deadbolt.

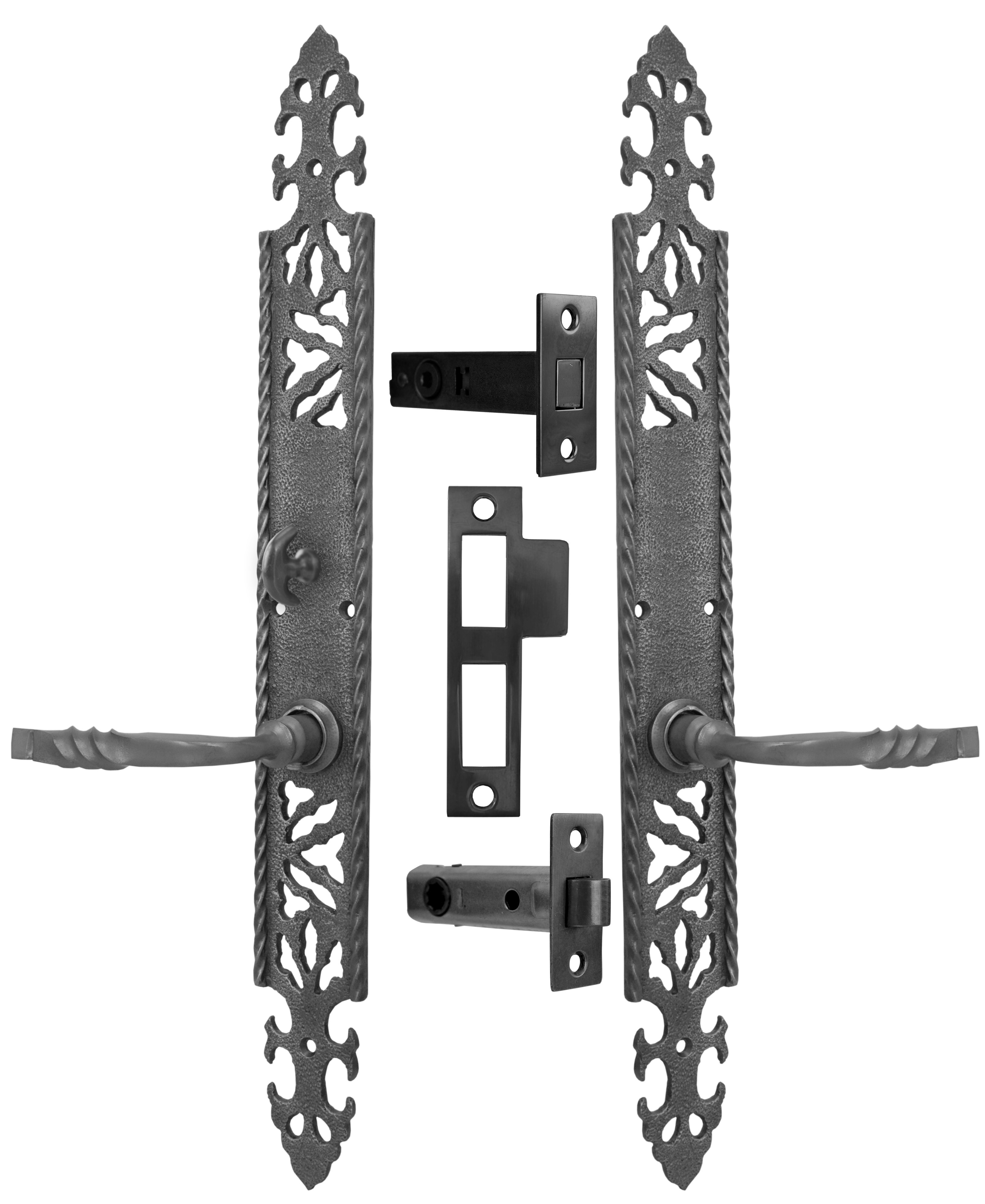

Each Set Includes:

  • One Door Plate with "Lower Knob Only" Function
  • One Doorplate with Turnlatch Function
  • Two Lever Handles with the Connecting Spindle
  • One Tubular Passage Latch
  • One Tubular Deadbolt
  • One Catchplate for Both Deadbolt and Passage Latch

Measurements:

  • Door Plates:
    • Overall:  2" wide by 17 ¼" tall.
    • Thickness:  516"
    • Distance from the turnlatch stem to the center of the doorknob receiver is 2 ½".
  • Lever Handles:
    • Length:  4 38"
    • Projection:  2 ¼"
    • Thickness:  58"
    • Base Diameter:  1116"
  • Passage Latch:
    • Backset:  2 38"
    • Latch Face:  1" x 2 ¼"
    • Latch can be installed by drilling a 7/8" hole, then recessing the wood for the latch face.
  • Deadbolt:
    • Backset:  2 38"
    • Case:  3 ¼" long x 1316" tall x 916" deep.
    • Deadbolt Face:  2 ¼" x 1 116"
  • Catchplate:  4 ½" tall x 1" wide (minus tongue).

Mounting screws are included for each piece of hardware in this set.
