Gothic or Arts & Crafts Iron Door Plate Set with Mortise Lock (Z344MKKSET1)
Price:$364.00
Quantity:
Add to cart
Add to cart

Options:
Cast Iron Door Set with 2 ¼" Backset Mortise Lock
Cast Iron Door Set with 2 ⅝" Backset Mortise Lock
Set Door Handing:
Left Hand
Right Hand
Gothic or Arts & Crafts Iron Door Plate Set with Mortise Lock (Z344MKKSET1)
alternate view 0alternate view 1alternate view 2

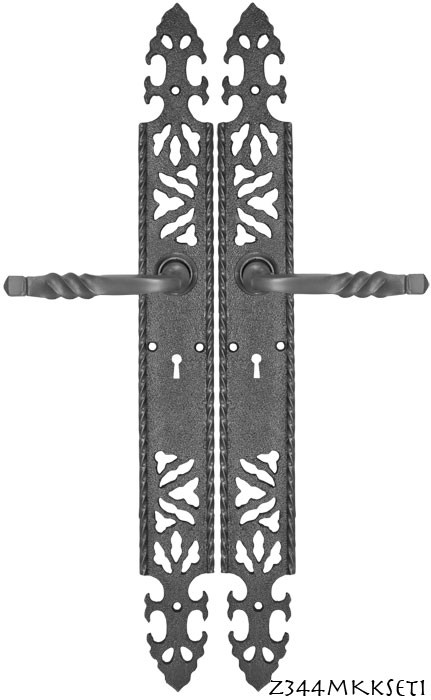

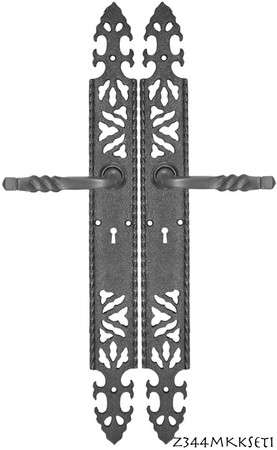

Gothic or Arts & Crafts Style Recreated Cast Iron Door Set
with Skeleton Key Mortise Lock

Z344MKKSET1-1  Cast Iron Door Set with 2 ¼" Backset Mortise Lock
Z344MKKSET1-2  Cast Iron Door Set with 2 58" Backset Mortise Lock

Solid cast iron door set with a very Gothic, or rustic, Arts & Crafts appeal.

This Interior Mortise Passage Set locks from both sides using a skeleton key.

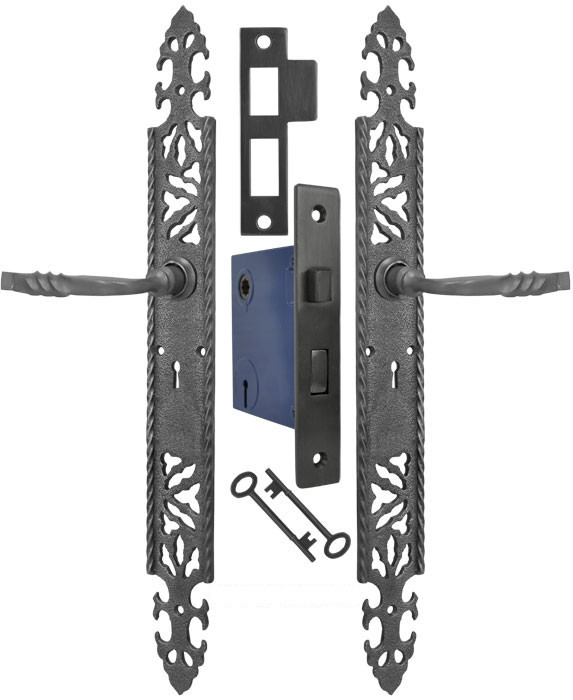

Each Set Includes:

  • 2 Door Plates with Doorknob & Keyhole Function
  • 2 Lever Handles with the Connecting Spindle
  • 1 Mortise Lock with 2 Skeleton Keys (choice of 2 ¼" or 2 58" backset)

Measurements:

  • Door Plates:  2" wide by 17 ¼" long.  516" thick.
  • Lever Handles:  4 38" long; 58" thick; each projects 2 ¼".
  • Mortise Locks:
    • 2 ¼" Backset Lock:
      • Lock Body:  3 ¾" tall x 2 78" deep x 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".
    • 2 58" Backset Lock:
      • Lock Body:  3 ¾" tall x 3 316" deep, and 58" thick.
      • Faceplate:  1" wide x 6" tall; 316" thick.
      • Strike Plate:  4 ½" tall x 1" wide (plus tongue).
      • Distance from the center of the doorknob receiver to the center of the round keyhole bit is 2 ¼".

Mounting screws are included for each piece of hardware in this set.
