Contemporary Double Door Entry Set With Solid Brass Knobs(L23DBS2)
Price:$571.73
Quantity:
Add to cart
Add to cart

Cylinder Length:
L-9CC 1" Cylinder
L-9C4 1 1/4" Cylinder
L-150S 1 1/2" Cylinder
L-175S 1 3/4" Cylinder
Set Door Handing
:
Right Hand

Left Hand
Finish:
Polished Brass
Antique Brass
Oil Rubbed Bronze

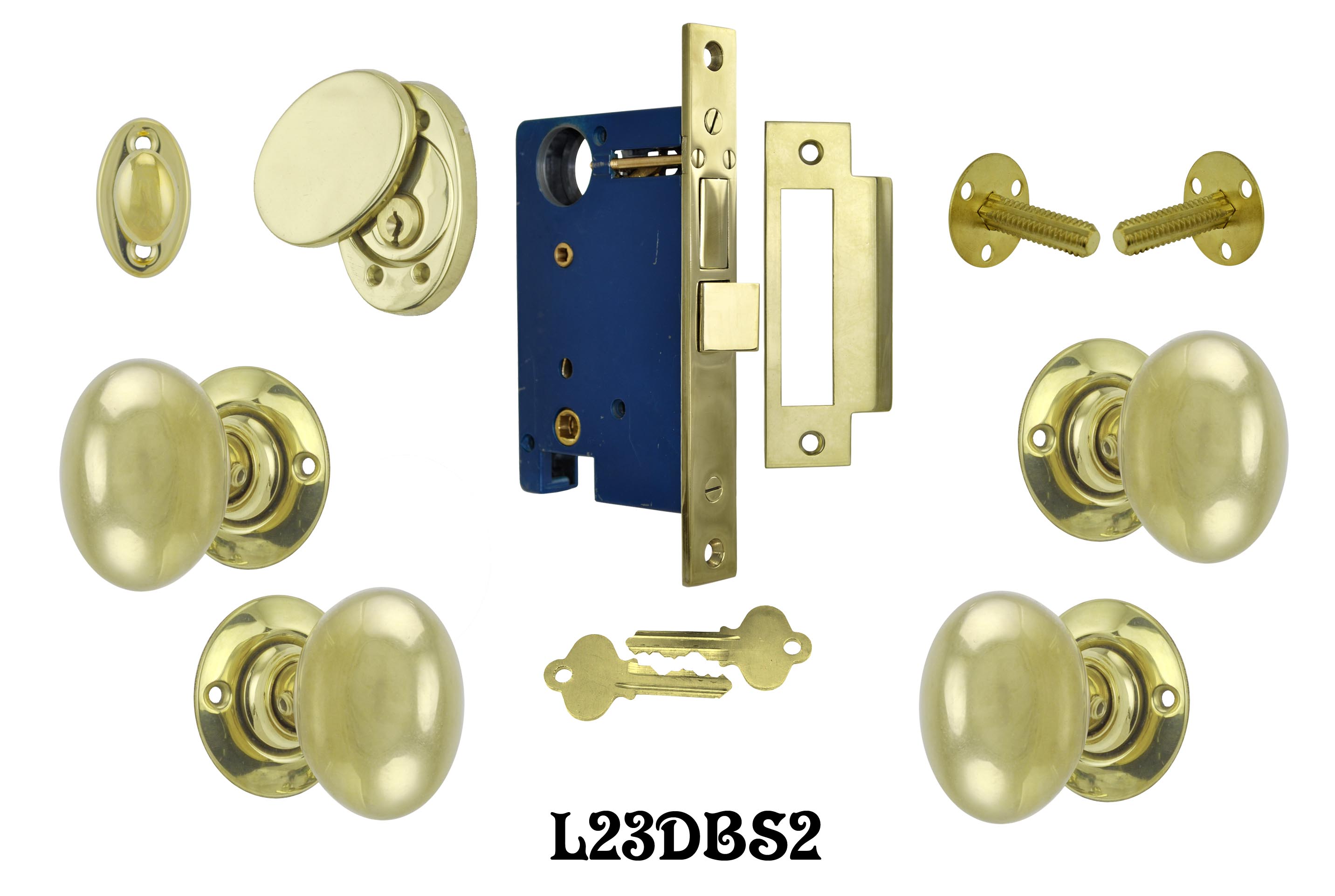

Contemporary Double Door Entry Set With Solid Brass Knobs(L23DBS2)
alternate view 0alternate view 1

L23DBS2 Double Door Entry set with Solid Brass Doorknobs Polished Unlacquered Brass

L23DBS2-DK Double Door Entry set with Solid Brass Doorknobs Antiqued Brass

L23DBS2-OB Double Door Entry set with Solid Brass Doorknobs Oil Rubbed Bronze

The complete door set includes:

  1. Four Doorknob Rosettes
  2. Four Solid Brass Doorknobs
  3. Swinging Cylinder Cover
  4. Mortise Lock with connecting spindle
  5. Cylinder Lock: See our Lock Cylinder Size Chart to select the correct cylinder length for your door.
  6. Turnlatch
  7. Two Dummy Spindles

Set Measurments:



Rosettes:   2 1/8" Diameter.



Doorknobs: 2 3/8" tall by 1 9/16" wide, and projects 2 3/8".



Lock: Lock body measures 5 1/2" tall by 3 5/8" deep. 13/16" thickness.

Lock face is 1" wide by 7 1/2" long. Backset is 2 1/2", including the thickness of the face plate. Distance from the center of the bolt throw hole to the center of the door knob spindle hole is 2 1/2". Catch plate is 4 7/8" long by 1 7/8".

Cylinder Cover: Measures 2 1/2" long by 1 3/4" wide. Cylinder hole for standard 1.156" (1 5/32") cylinder dia.

Turnlatch:  Square shaft measures 3/16" in diameter, and is 7/8" long. Knob measures 1 1/8" tall by 3/4" wide. Backplate measures 2" tall by 1 1/8" wide.
